HUBER Manhole Covers made of Stainless Steel
The best solution for any application!

  • Unrivalled durability
  • Absolute corrosion protection by pickling and passivation
  • Permanent safety for men and environment

Weatherproof manhole cover SD1, rectangular typeZamknij

Weatherproof manhole cover SD1, rectangular type

Manhole cover, weatherproof, rectangular in shape, completely made of 1.4307 (AISI 304 L) stainless steel.

In accordance with DIN 1239:2018-4, suitable for use in Ex zone 1.

Manhole cover weatherproof, round type SD2Zamknij

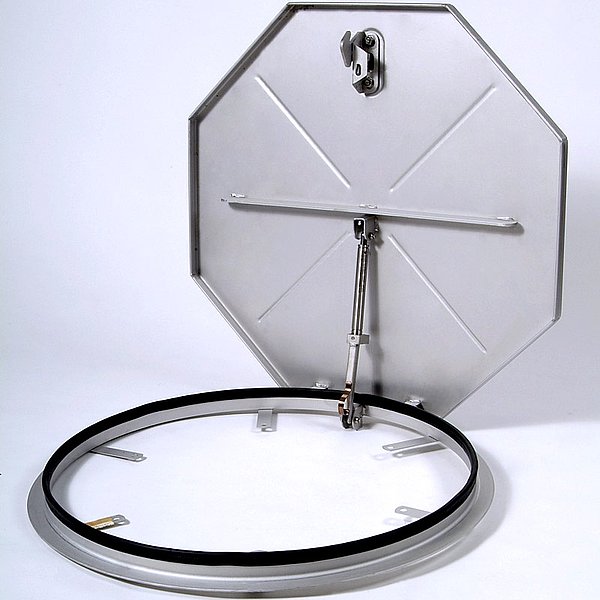

Manhole cover weatherproof, round type SD2

Weatherproof HUBER - stainless steel - manhole cover, round type.
Addition: with air vent, with insulation, or with air vent and insulation, with pollen filter, with fixing material and foam rubber gasket 30/5.
Application areas: well shafts, shafts at sources, steam ventilation shafts, waste water shafts, sump shafts, cover shafts, etc.

Manhole cover extra secure, square type SD3Zamknij

Manhole cover extra secure, square type SD3

HUBER - stainless steel - manhole cover, weatherproof, extra secure to prevent forced access, square type.
Addition:with air vent, with insulation, or with air vent and insulation, with pollen filter.
Application areas: well shafts, shafts at sources, steam ventilation shafts, waste water shafts, sump shafts, slide shafts, etc.

Manhole cover extra secure, round type SD4Zamknij

Manhole cover extra secure, round type SD4

HUBER - stainless steel - manhole cover, weatherproof, extra secure to prevent forced access, round type.
Addition: with air vent, with insulation, or with air vent and insulation, with pollen filter.
Application areas: well shafts, shafts at sources, steam ventilation shafts, waste water shafts, sump shafts, slide shafts etc.

Manhole cover watertight, square type SD5Zamknij

Manhole cover watertight, square type SD5

HUBER - stainless steel - manhole cover, watertight up to 1m head of water, square type.
Addition: fixing material and foam rubber gasket 30/5.
Application areas: als shafts in flooded areas, such as well shafts, shafts at sources, steam ventilation shafts, waste water shafts, sump shafts, slide shafts etc.

Manhole cover watertight, round type SD6Zamknij

Manhole cover watertight, round type SD6

HUBER - stainless steel - manhole cover, watertight up to 1m head of water, round type.
Addition: fixing material and foam rubber gasket 30/5.
Application areas: als shafts in flooded areas, such as well shafts, shafts at sources, steam ventilation shafts, waste water shafts, sump shafts, slide shafts.

Manhole cover load bearing, square type SD7Zamknij

Manhole cover load bearing, square type SD7

HUBER - stainless steel - manhole cover, weatherproof, load bearing up to 15 kN, up to 125 kN, up to 400 kN, certificated as burglar-proof, test load as per DIN 1229, completely made of stainless steel.
Application areas: for manholes in walking and driving areas.

Manhole cover load bearing, round type SD7.RZamknij

Manhole cover load bearing, round type SD7.R

HUBER - stainless steel - manhole cover, weatherproof, load bearing up to 15 kN, up to 125 kN, up to 400 kN, round, certificated as burglar-proof, test load as per DIN 1229, completely made of stainless steel.
Application areas: for manholes in walking and driving areas.

Sliding hatch cover SD12Zamknij

Sliding hatch cover SD12

HUBER - stainless steel - sliding hatch cover.
Forms of application: stormwater holding tanks, underground container, for access to manholes. By shifting the cover there is a large free opening so that access is also possible with ladders.

Korzyści

Korzyści

HUBER manhole covers - safety for the operator

feature

advantage

benefit

stainless steel, acid-treated in a pickling bath and passivated

long life, hygienic

cost-saving as no refurbishing is required

stormwater-tight

protection against wetness

dry manholes

stainless steel gas pressure spring

easy to open (corrosion-resistant as well)

easy to open by one person

covered hinges

prevention of unauthorised access

burglarproof

self-retracting anti-closing device

no need for manual service

protection against unintended closing

self-retracting lock

quick and easy to close

again easy to operate

protective hood of brass

prevents injuries, protects against wetness, serves as an additional safety lock

maintenance-free

cover plate with a centrally raised profile

stormwater runs off; stability

walkable; stagnant water is prevented

vapour hood

optimal manhole ventilation

dry manholes

insect filter

prevents the entrance of small animals

ventilation without any risk of pollution

foamed insulation

complete thermal insulation without any cold bridges

reduces formation of spray water

frames suitable for combination

suitable for two installation types

installation is possible prior to and after completion off the structure, wrong purchases are avoided

safety lock suitable for retrofitting

additional safety lock

to be retrofitted whenever requested

available from stock

short-term availability

short delivery times avoid site standstills
